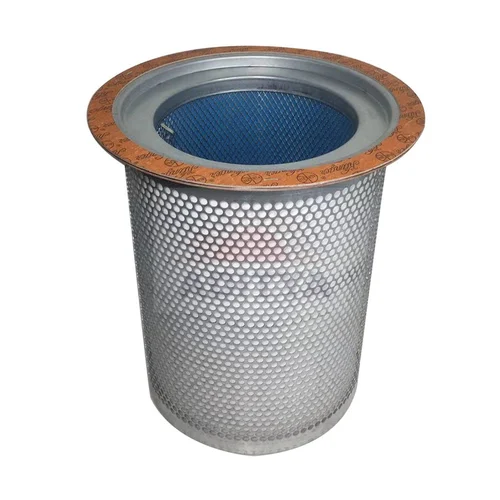

Replacement Chicago Pneumatic Air Oil Separator

Minimum Order Quantity 1 Piece
Compatible Brand Chicago Pneumatic
Compressor Capacity 10 HP to 300 HP
Outer Diameter 90 mm to 603 mm
Length / Dimension 180 mm to 900 mm
Airflow Capacity Up to 500 CFM
Material Mild Steel
Color White, Grey
Packaging Type Box

Engineered to restore the high-efficiency performance of your CPA, CPB, or CPC series screw compressor, this premium Air Oil Separator is the critical component for ensuring clean, high-quality compressed air with minimal oil carryover (typically <3 ppm). Constructed from high-strength borosilicate microfiber with built-in grounding to prevent static discharge, it effectively coalesces oil aerosols from the compressed air stream and returns them to the lubrication system. This targeted separation not only protects downstream filters and production equipment from oil contamination but also maintains a low differential pressure, which directly reduces energy consumption and prevents the motor from overloading. Designed for durability in demanding 24/7 industrial environments, this separator serves as a 100% compatible, cost-effective alternative to OEM parts, providing reliable 4,000-hour service life while upholding the integrity of your compressed air system.

ID Numbers
2205406514 2205406502 6221375000 6221363500 2205406512
2205406519 2205406503 2205406518 2205406507 6221372500
6221372550 6221358200 6221358250 2205406509 6221372450
6221372400 6221357800 6221357850 2205406508 6221347800
6221347850 6221372800
