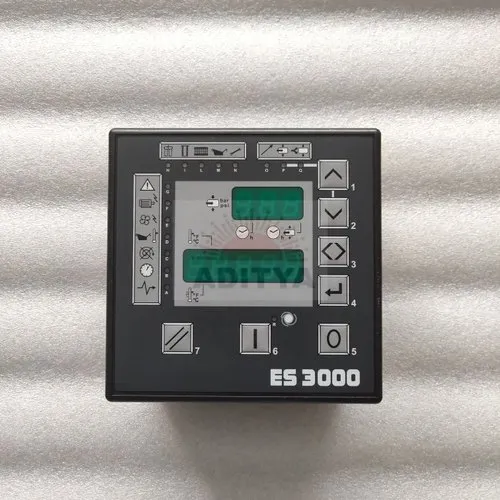

ES3000 Display Controller for Chicago Pneumatic compressor
| Minimum Order Quantity | 01 Piece |
|---|---|
| Controller Type | HMI Controller |
| Compressor Type | Screw Compressor |
| Supported Compressors | SCREW |
| Communication | AS OEM |
| Display Type | DIGITAL |
| Type | Automatic |
| Usage/Application | DISPLAY CONTROLLER |
| Model Name/Number | 10 HP TO 300 HP |
| Power | DC |
| Weight | 250 GMS |
The ES3000 Electronic controller delivers complete compressor management with a comprehensive information display.
Management
- Start/Stop including stop after default and auto restart after power failure function.
- Intelligent control system that minimises unload time.
- Pressure control.
- Phase control (standard).
- Remote control (can be activated).
- Weekly/Daily planner.
- Status display (start-up, stop, stand-by).
- General alarm.
- Default (low or high temperature, turbine or main motor overload, wrong rotation, over pressure).
- Due maintenance and component change.
- History of last 4 alarms.
- Soft touch keyboards with 2 digital screens and 15 fixed or blinking LED's.
- 8 digital and 4 analogical input connections.
- 14 digital and 1 analogical (for IVR) connections.
- 1 serial port for communication with up to 5 other compressors in a network.
- 1 interface port (computer connection)
